WF5805F－1Bar

WF5805F is a high resolution pressure sensor with I? C and SPI, including a silicon piezoresistive pressure element and a high resolution 24 bit △∑ ADC. WF5805F provides high-precision 24 bit digital output of pressure and temperature. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error, internal integration of data compensation and simple communication connection. WF5805F sensor is packaged with stainless steel ring surface and substrate and complies with ROHS standard. Its size is very small, only for 4.5x4.5mm, 3.5mm thick.

WF282-1Bar

WF282 is a digital high-precision barometer and altimeter specially designed for consumer applications based on capacitive principle core and a high-resolution 24 bit ΔΣ ADC. WF282 has a low voltage, ultra-low power design, which is very suitable for battery powered portable devices. Such as smart phones, smart watches, tablets, GPS navigation equipment and outdoor equipment. The sensor is 2.0 × 2.5 × 0.95 mm in size and is packaged with 8-pin metal cover LGA. I2C and SPI digital interface output can be used with MCU conveniently.

WF280-1Bar

WF280 is a digital high-precision barometer and altimeter specially designed for consumer applications based on MEMS piezoresistive principle core and a high-resolution 24 bit ΔΣ ADC. WF280 has a low voltage, ultra-low power design, which is very suitable for battery powered portable devices. Such as smart phones, smart watches, tablets, GPS navigation equipment and outdoor equipment. The sensor is 2.0 × 2.5 × 0.95 mm in size and is packaged with 8-pin metal cover LGA. It can distinguish the height change of 250px and has a very low zero temperature coefficient (TCO). I2C digital interface output can be used with MCU conveniently.

WF5803F-7Bar

WF5803F is a high resolution pressure sensor with I? C and SPI interfaces, including a silicon piezoresistive pressure element and a high resolution 24 bit △∑ ADC. WF5803F provides high-precision 24 bit digital output of pressure and temperature. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error. Data compensation is internal integration, and communication connection is very simple. WF5803F sensor is packaged with stainless steel ring surface and base plate and conforms to ROHS standard, with very small size 6.4x6.8mm, 3.3mm thick.

WF5803F－1Bar

Wf5803F is a high resolution pressure sensor with I? C and SPI, including a silicon piezoresistive pressure element and a high resolution 24 bit △∑ ADC. Wf5803F provides high-precision 24 bit digital output of pressure and temperature. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error. Data compensation is internal integration, and communication connection is very simple. Wf5803F sensor is packaged with stainless steel ring surface and base plate and conforms to ROHS standard, with very small size 6.4x6.8mm, 3.3mm thick.

WF6268D

TheWF6268Dseriesproductsarepressuresensorsformeasuringgaugepressure.ItconsistsofasiliconmicrofabricationsensorchipandasignalregulatortoformanASIC.ASICisequippedwith24bitresolution∑-ΔADCandoutputhigh...

WF3050D

WF3050Dseriesproductisthepressuresensorwhichmeasuresgaugepressures.Itconsistsofasiliconmicro-machinedsensingelementchipandasignalconditioningASIC.TheASICisequippedwitha24-bitresolutionΣ-ΔADCandoutpu...

WF100E 0.6BG

Overview:TheWF100EseriespressuresensorsadopttheSOP6packagingform,whichintegrateshigh-precisionpressuresensors,ADC,DAC,andDSPchipsinside.Theanalogoutputofthepressuresensorisdigitallyandtemperaturec...

WF183DE

WF183DEisaneconomicaldigitalpressureandtemperaturesensorthatincludesaMEMSpressuresensorandahigh-resolution24bitΔ∑ADCandDSP.WF183DEprovideshigh-precisioncalibratedpressureandtemperaturedigitalout...

WF200D

WF200Disahigh-resolutionpressuresensorwithI²CandSPIcommunication,includingasiliconpiezoresistivepressureelementandahigh-resolution24bit△ΣADC.WF200Dprovideshigh-precision24bitpressureandtemperatured...

WF100D

Wf100DisahighresolutionpressuresensorwithI²CandSPI,includingasiliconpiezoresistivepressureelementandahigh-resolution24bitdeltasigmaADC.Wf100Dprovideshigh-precision24bitpressureandtemperaturedigitalo...

WF183D

WF183Disaneconomicaldigitalpressureandtemperaturesensor,whichcontainsaMEMSpressuresensor,ahigh-resolution24bit△ΣADCandDSP.WF183Disapplicabletotheindustriessuchasdigitaldisplayinflationpump,tirepress...

WF183D-1Bar

WF183Disaneconomicaldigitalpressureandtemperaturesensor,whichcontainsaMEMSpressuresensor,ahigh-resolution24bit△ΣADCandDSP.WF183D-1Barisapplicabletotheindustriessuchasdigitaldisplayinflationpump...

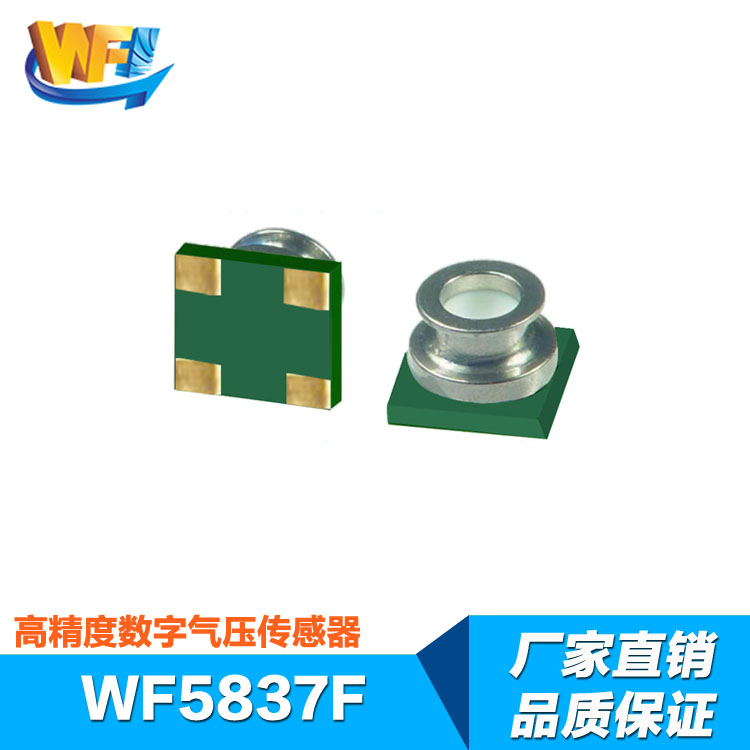

WF5837F－1Bar

WF5837F is a high resolution pressure sensor with I? C and SPI, including a silicon piezoresistive pressure element and a high resolution 24 bit △∑ ADC. WF5837F provides high-precision 24 bit digital output of pressure and temperature. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error. Data compensation is internal integration, and communication connection is very simple. WF5837F sensor is packaged with stainless steel ring surface and base plate and conforms to ROHS standard. The size is very small, only for 3.3 * 3.3mm, 2.75mm thick.

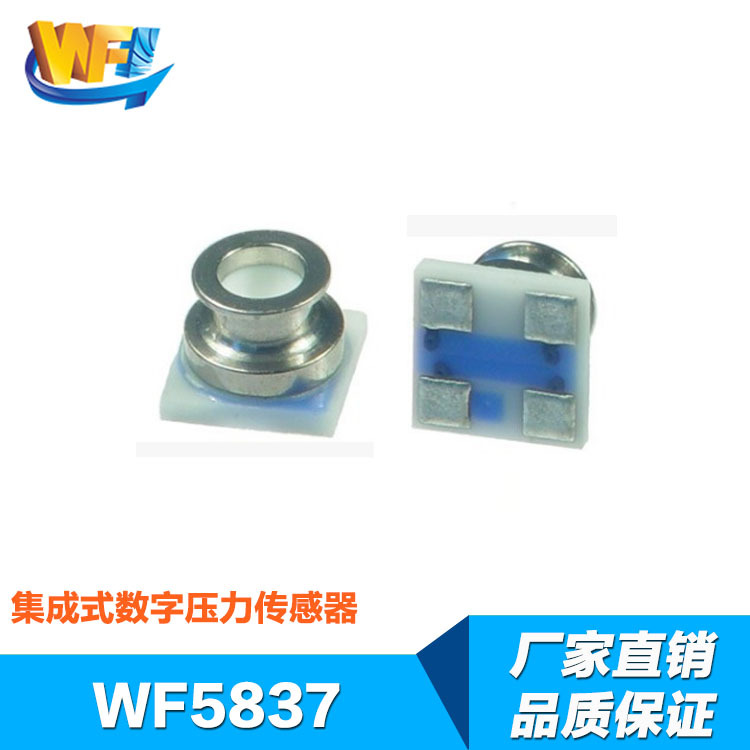

WF5837C－1Bar

WF5837C is a high resolution pressure sensor with I? C and SPI, including a silicon piezoresistive pressure element and a high resolution 24 bit △∑ ADC. WF5837C provides high-precision 24 bit digital output of pressure and temperature. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error. Data compensation is internal integration, and communication connection is very simple. WF5837C sensor is packaged with stainless steel ring surface and base plate and complies with ROHS standard. The size is very small, only for 3.3 * 3.3mm, 2.75mm thick.

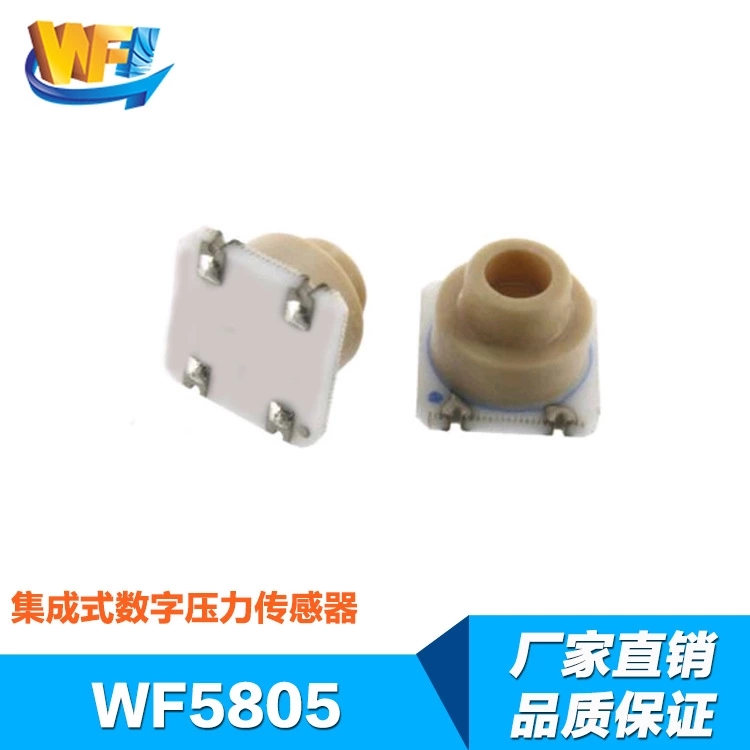

WF5805C－1Bar

Wf5805C is a high resolution pressure sensor with I? C and SPI, including a silicon piezoresistive pressure element and a high resolution 24 bit △∑ ADC. Wf5805C provides high-precision 24 bit digital output of pressure and temperature. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error. Data compensation is internal integration, and communication connection is very simple. Wf5805C sensor is packaged with stainless steel ring surface and base plate and complies with ROHS standard. The size is very small, only for 4.5 * 4.5mm, 3.5mm thick.

WF5803C－1Bar

The WF5803C is a high-resolution pressure sensor with I? C and SPI interfaces, including a silicon piezoresistive pressure element and a high-resolution 24 bit △∑ ADC. WF5803C provides high-precision 24 bit pressure and temperature digital output. Customers can convert speed and height according to application needs. All built-in calculations adopt high-speed 4MHz floating-point operation, with small calculation error, internal integration of data compensation and simple communication connection. WF5803C sensor is packaged with stainless steel ring surface and base plate and conforms to ROHS standard, with very small size 6.4x6.8mm, 3.3mm thick.
