Digital pressure sensor
Analog pressure sensor
hall sensor
Other sensors
sensor
parameter
- Digital pressure sensor
- Analog pressure sensor
- hall sensors
- Other sensors
-
picture type range
(KPa)Relative precision
(KPa)Resolving power
(KPa)working temperature
(℃)Temperature accuracy
(℃)Temperature resolution
(℃)Vdc
(V)Working current
(mA)LDO ON
(uA)encapsulation size Interface
WF5805F－1Bar 100 ±0.15 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 LGA4 4.5*4.5*3.5mm I²C
WF282-1Bar 100 ±0.2 0.001 -40~85 ±0.5 0.01 1.8~3.6 5.4 <0.1 LGA8 2.0*2.5*0.95mm I²C/SPI
WF280-1Bar 100 ±0.2 0.001 -40~85 ±1 0.01 1.8~3.6 5.4 <0.1 LGA8 2.0*2.5*0.95mm I²C
WF5803F-7Bar 700 ±2 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 LGA8 6.4*6.8*3.3mm I²C/SPI
WF5803F－1Bar 100 ±0.3 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 LGA8 6.4*6.8*3.3mm I²C/SPI
WF6268D 0~1000 ±0.03 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 LGA8 6.2*6.8*7.9mm I²C/SPI

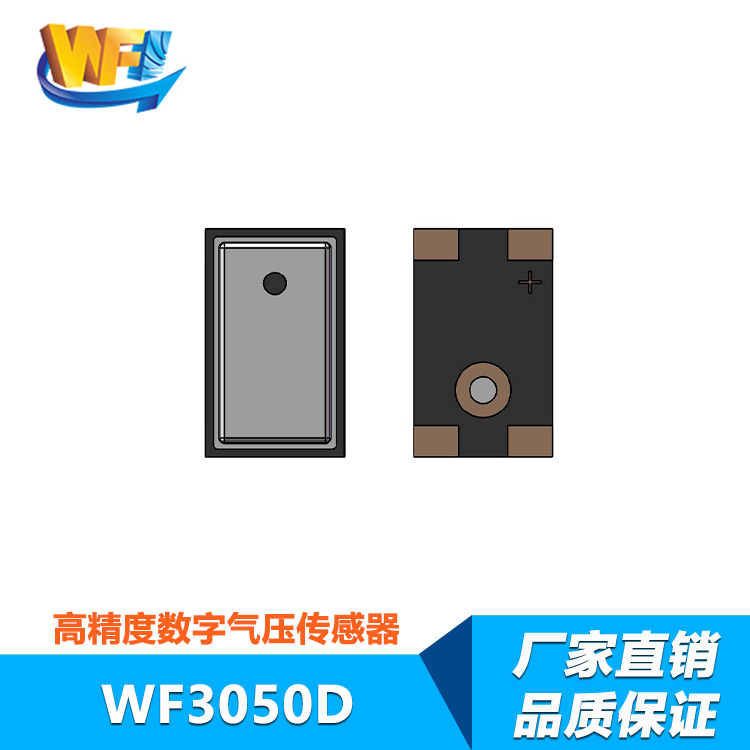

WF3050D 0~1000 ±0.03 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 LGA4 3.0*5.0*1.2mm I²C

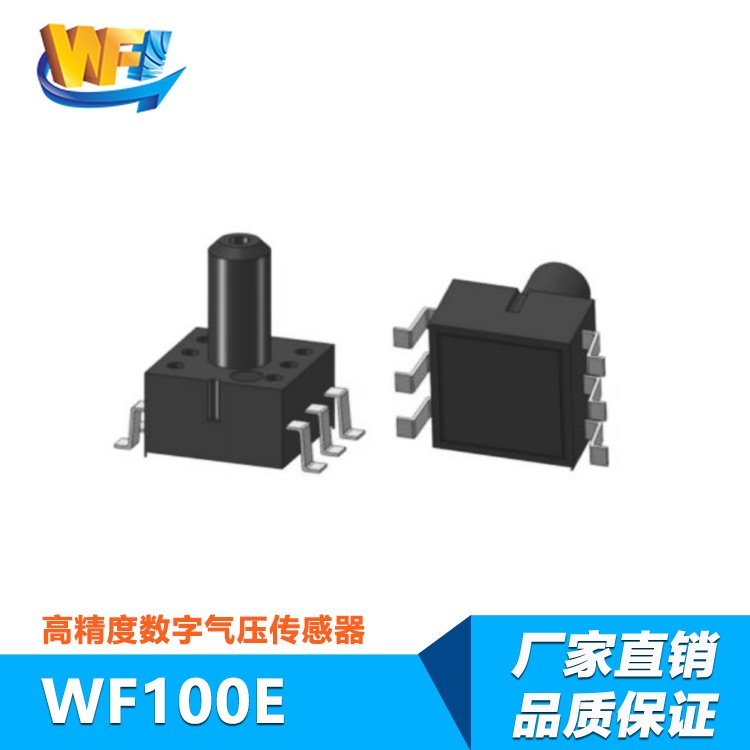

WF100E 0.6BG 0～60 ±1 0.001 -40～125 ±1.5 0.01 1.8~3.6 5 < 0.1 SOP6 10.5*8.5*9.5mm I²C/SPI

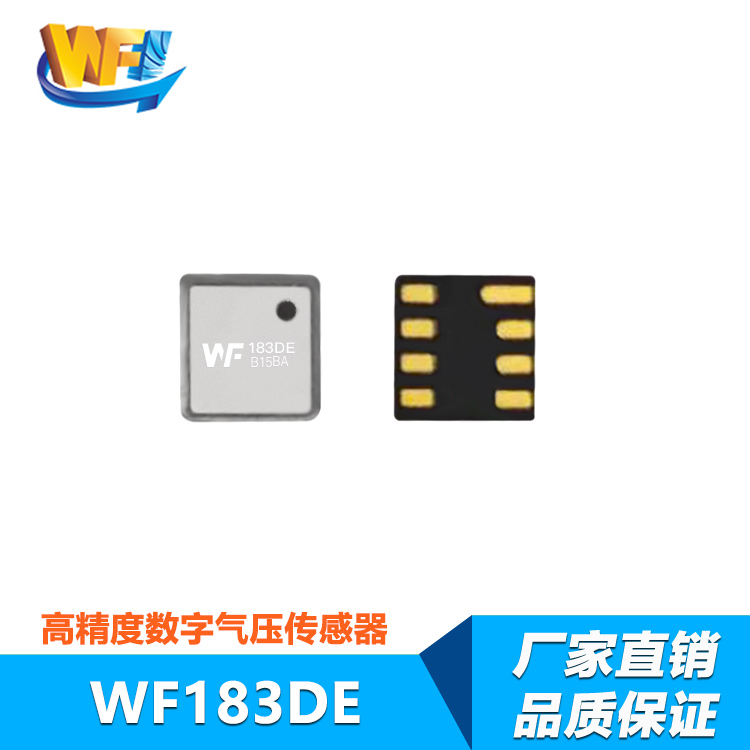

WF183DE 0~1500 ±0.05 0.01 -40~125 ±1.5 0.01 2.4~5.5 1.5 <2 LGA8 3.8 X3.6 X0.8mm UART
WF200D 5 ±0.03 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 SOIC 16 10.3*10.3*10.3mm I²C/SPI

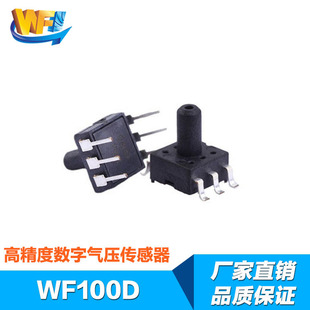

WF100D 40 ±0.3 0.001 －40～85 ±1 0.01 1.8~3.6 5.4 ＜0.1 LGA8 10.5*8.5*9.5mm I²C/SPI
WF183D 1100 ±0.05 0.02 －40～85 ±1.5 0.01 2.4V ~ 3.6V 1.5mA < 2uA LGA 8 3.8 X3.6 X1.05mm UART
